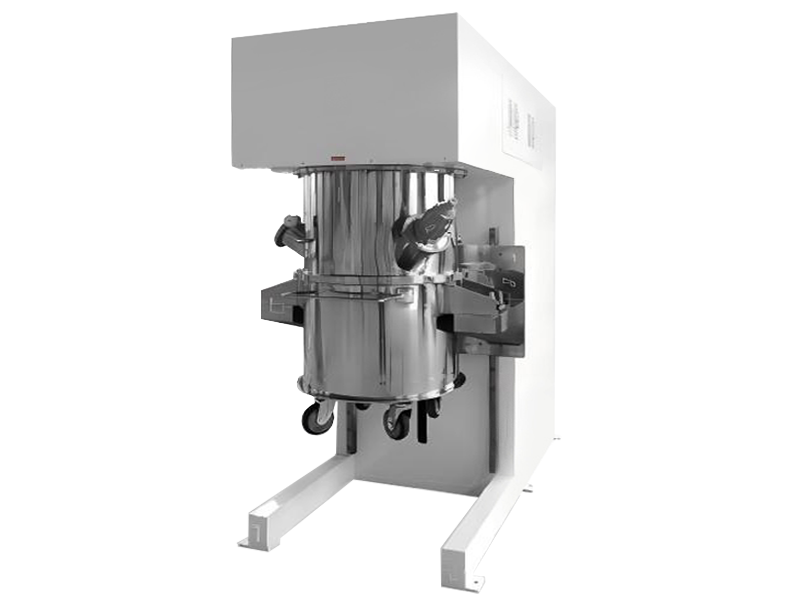

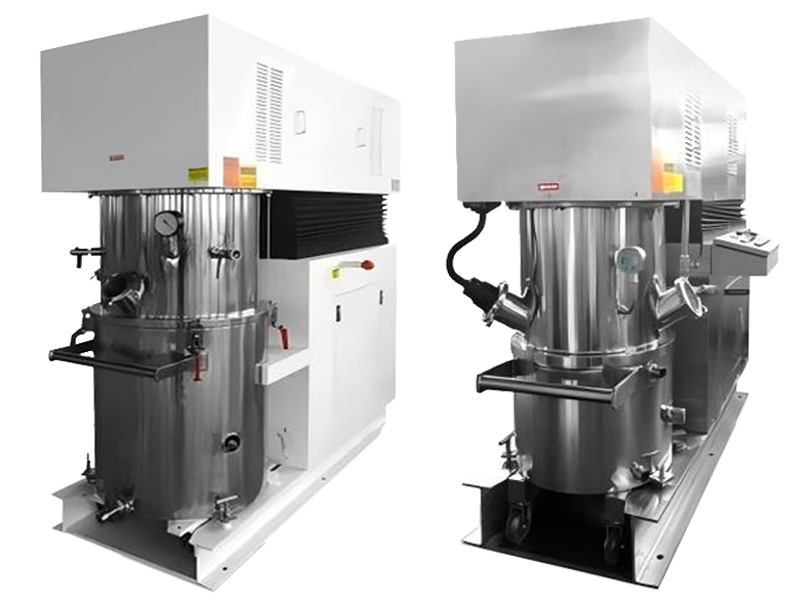

Vessel Elevated Planetary Disperser

Vessel Elevated Planetary Disperser is on the basis of customer's special technical requirements, enhancing the mixing vessel instead of the mixing head. It’s advantage is that customers can install some fixed pipe line on the vacuum cover. This kind of mixing for any type of mixers is applicable. Equipment exterior paint treatment, precision polishing, and precise temperature control is one of Hardline’s pursuits of the perfect performance on quality.

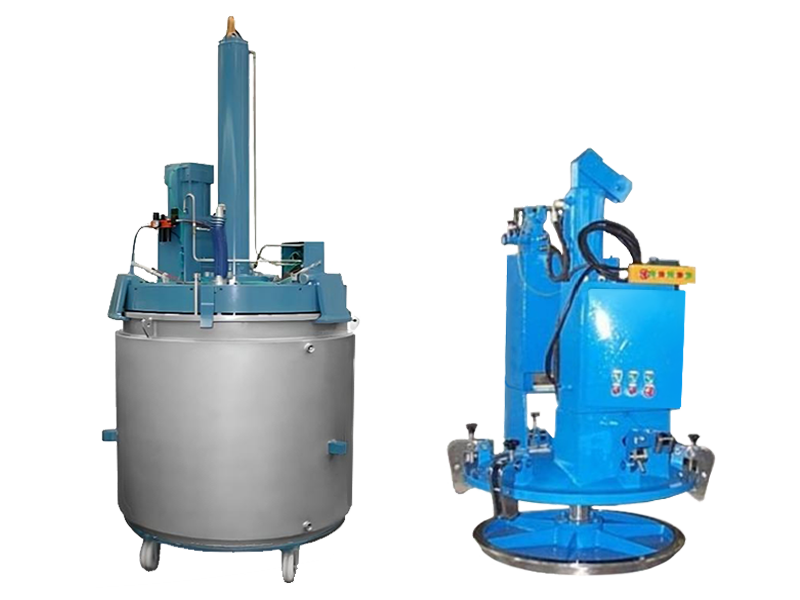

Removable Discharge System

Due to the requirement of product process, sometimes customer need move the mixing material to other place for discharging. Hardline devised the removable discharging system to solve this problem. It has the characteristic of small size,small space occupation,simple structure,easily operation and so on.You also can choose Hydraulic or pneumatic drive for this machine.

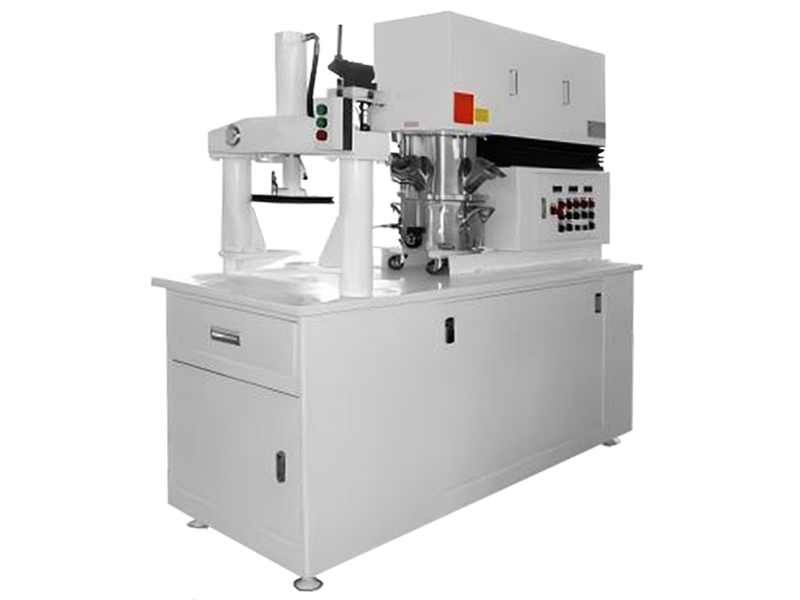

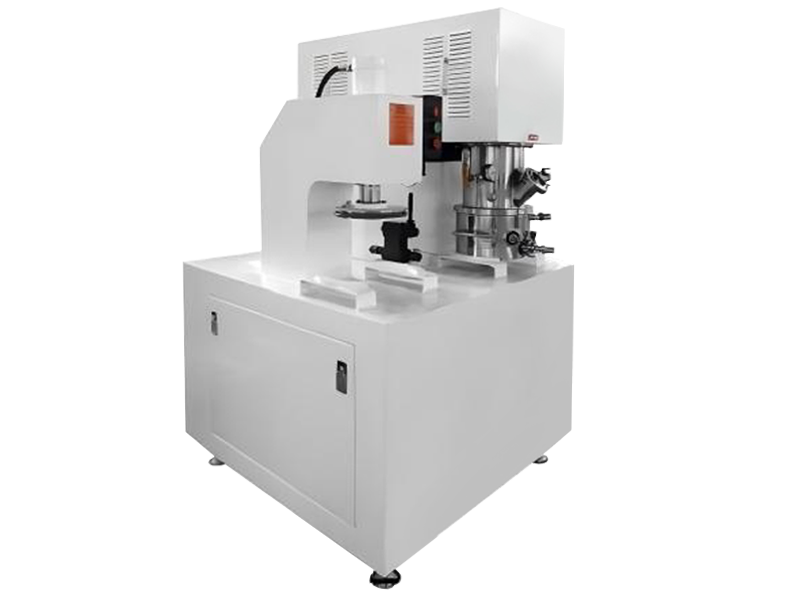

Lab Discharge System

Lab Discharge System is produced to mainly match with the lab planetary disperser or lab planetary mixer. After mixing, the product molding process needs the help of discharging system. Lab discharge system can be used alone, and it also can be installed together with mixing console for using.

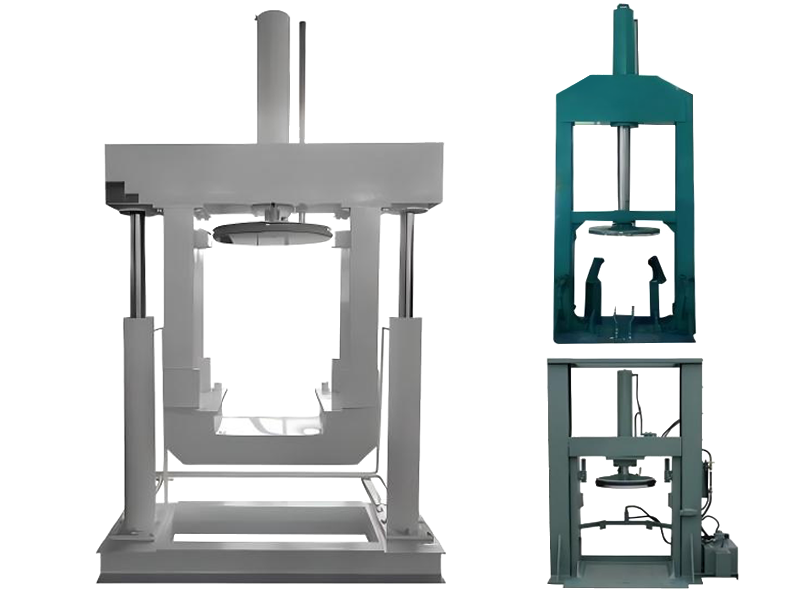

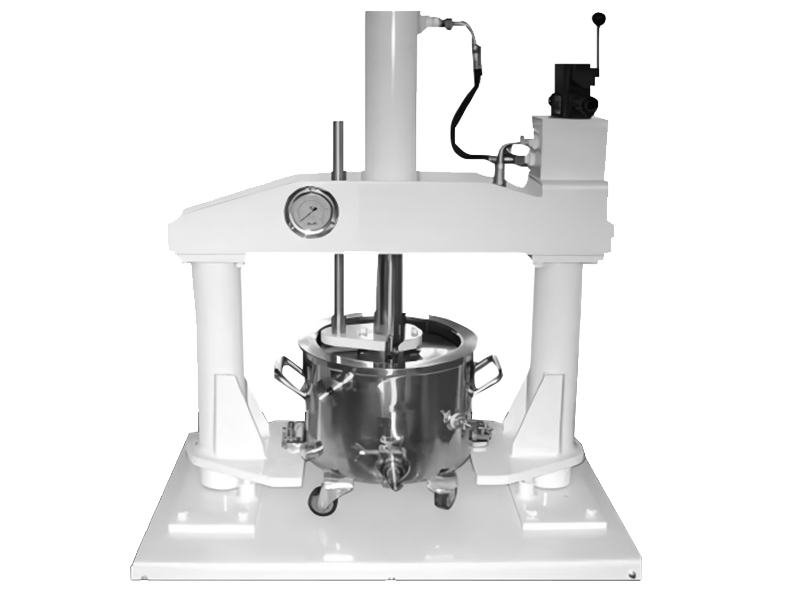

Fixed Discharge System

If the container has been designed to enhance the base and has reached the desired height of the material,you can directly use the fixed discharge system.The fixed discharge system can use the discharge port on the container to discharge the material.It also can use the discharge port on pressure plate to discharge the material.The fixed discharge system is composed of rack,control systems, pressure cylinders,hydraulic systems and other components.It has the features of low cost,easy to use.

Elevated Discharge System

Elevated Discharge System is a device designed for facilitating the material discharging and filling.The rack will be raised to a suitable height by two cylinders,then discharge the material. This kind of structure is convenient and flexible.You can according to the height of the discharging port set the height of discharging system.

Lab Planetary Mixer

Lab Planetary Mixer is mainly used for customer's pre-research. Above various types of mixer can provide experimental equipment. Experimental equipment is generally 1-3L, or 5-8L,vacuum system. hydraulic system and control system are standard configuration of such equipment.Hardline also can according to client’s requirement make sanitary stainless steeI material to meet the GMP requirement,or the container designed to dump type structure to facilitate users to discharge.

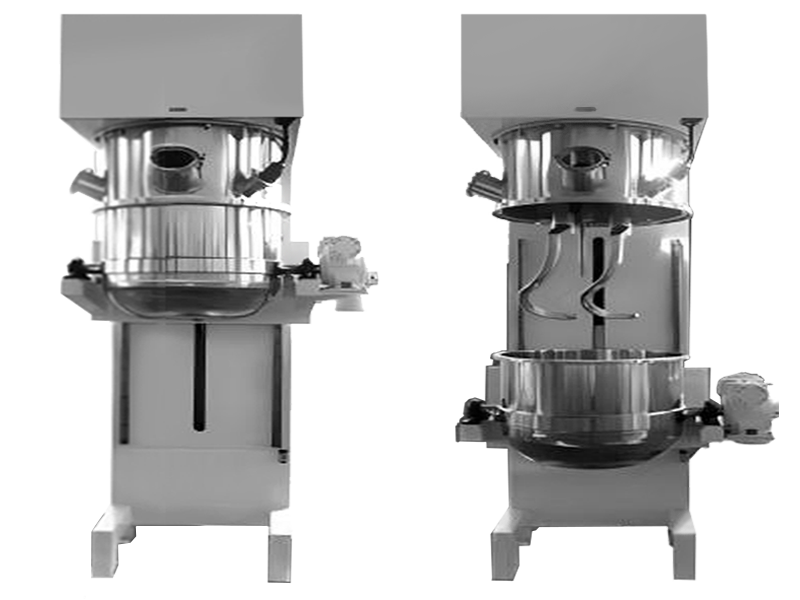

Hook Planetary Mixer

Hook Planetary Mixer is composed of two hook-type agitator blades.The upper structure of two hooks make the material move down and the lower part of the hook make the material move up.This hook blade usually requires use cooperatively with special structure of the container.The bottom of the container must be spherical and the middle part be upward convex.Such mixing method is relatively simple,but manufacturing is very difficult.The usage of powder mixing is very common.

Butterfly Planetary Mixer

Butterfly Planetary Mixer is composed of two butterfly type of agitator blades.Agitator blades use the design of clover butterfly blade,and its speed is generally low to accommodate the mixing for viscous materias.According to process requirements.each main shaft can be installed two butterfly blades.When the two agitator shaft used in combination,two butterfly blades can be installed on one shaft and one butterfly blade installed on the middle of the other shaft,to ensure every aspect of the container has a good mixing effect.

Finger Blades Planetary Mixer

Stirring paddle of Finger Blades Planetary Mixer is made up of many blades,also known as blade type stirring paddle.The quantity of the blades is decided by the size of the mixing volume.A stirring paddle blade is divided into upper and lower two parts,the lower blade to turn up the material in the process of mixing,the upper blade to turn down the material in the process of mixing.Two paddle cooperatively used will make the material produce intricate mix trajectory.

Rectangular Blades Planetary Mixer

Rectangular Blades Planetary Mixer is composed of two rectangular type of agitator blades.According to material properties,rectangulor blades can be increased the crosspiece or diagonal cleat to increase the flow of materials in the mixing process.The bottom of rectangular blades can be installed automatically flip angle Tefion scraper to ensure that the bottom of the material can be thoroughly mixed into the material.lt also can maintain a certain gap between cylinder wall and rectangular blades by the scraper of the bottom and side wall.

Claw Blades Planetary Mixer

Double Planetary Mixers have the characteristic of low speed & large tarque.For viscosily material if not only has the capacity of mix but shears &kneads function.The revolution and rotation make the material in the center and sidewall mix thoroughly.According to material feature,different blades can be chosen including rectangular blades, butterfly blades,finger blades,turbo blades and new helical blades.In real application,the mixing type could be combined freely in order to avoid too much heat brought in mixing.The standard planetary mixer equips with scarper,temperature display,vacuum ope

Lab Planetary Disperser

Lab Planetary Disperser is mainly used for customer's pre- research or small batch production.Above various types of mixer can provide for experimental equipment. Experimental equipmentis generally 1-3L. or 5-8L.Vacuum system, hydraulic system and control system are standard configuration of such equipment. Hardline also can according client’s requirement make sanitary stainless steel material to meet the GMP requirement,or the container designed to dump type structure to facilitale users to discharge.
